工業母板

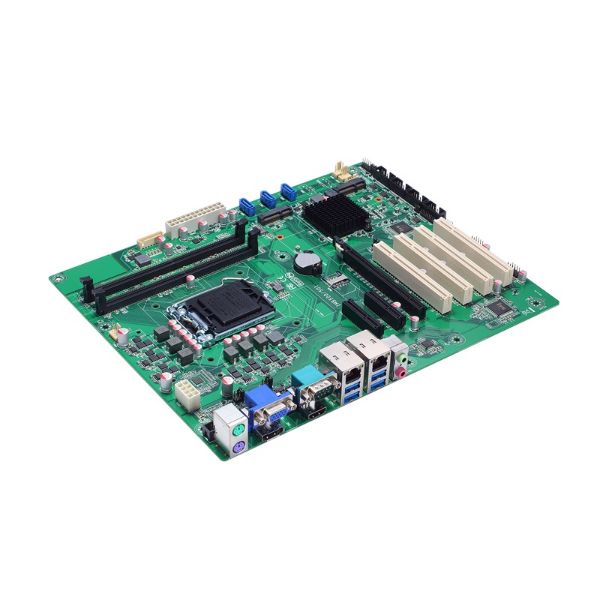

TOP-AAQ170-K62 ATX母板

ATX母板
● LGA1151 socket 7th/6th gen Intel® Core? i7/i5/i3,Pentium® & Celeron® processor (Kaby Lake/Skylake)
● 2x288-pin DDR4-2400/2133/1866 DIMM 最大支持32GB內存
● 支持DisplayPort、HDMI、VGA，支持雙顯
● 3 SATA-600，1 mSATA
● 4 USB 3.0，4 USB 2.0
● 1 PCI Express Mini Card 插槽

產品描述技術參數 應用方案相關產品

CPU	LGA1151 socket 7th/6th gen Intel® Core? i7/i5/i3, Pentium® & Celeron®
系統內存	2 x 288-pin DDR4-2400/2133/1866 DIMM, 最大支持32GB
芯片組	Intel® H110
BIOS	AMI BIOS
SSD	N/A
看門狗定時器	1~255 秒可編程設置
擴展接口	1 x PCIe x16
	2 x PCIe x4 (僅支持 x1 signal)
	4 x PCI
	1 x PCI Express Mini Card
	1 x SIM
鋰電池	3 V/220 mAH
尺寸	305 x 244 mm ATX母板
板厚	1.6 mm
工作溫度	0°C to +60°C (+32°F to +140°F)
相對濕度	10% to 95% 相對濕度, 無冷凝
SATA	3 x SATA-600; 1 x mSATA
硬件監控	檢測 CPU/系統溫度、電壓并支持智能風扇控制
以太網	1x 10/100/1000 Mbps 以太網 Intel® i219-LM;
	支持 Wake-on-LAN, PXE Boot ROM
	1 x 10/100/1000 Mbps 以太網 Intel® i210-AT;
	支持 Wake-on-LAN, PXE Boot ROM
音頻	瑞昱HD 音頻解碼 Mic-in/Line-in/Line-out ALC662
USB	4 x USB 3.0; 4 x USB 2.0
串口	4 x RS-232 (Internal box header)
串口	2 x RS-232/422/485 (COM 1: rear IO, COM 2: internal box header)
PS/2 Combo 接口	1 x PS/2 keyboard and mouse
TPM	N/A
SMBus	Yes
Digital I/O	8位in/out 可編程設置
圖形控制器	Intel® HD Graphic
顯存容量	共享系統內存
顯示接口	1 x DisplayPort
	1 x HDMI
	1 x VGA

ATX母板

Ordering Information
Standard
IMB501 (P/N: E38M501101)	ATX motherboard with LGA1151 socket 7th/6th gen Intel®Core? i7/i5/i3, Pentium® & Celeron®
IMB501 (P/N: E38M501101)	processor, Intel® H110, USB 3.0, SATA 3.0, 2 GbE LAN, VGA, DisplayPort, HDMI and mSATA
Optional
5938A808010E	2 x USB 2.0 cable with bracket, P=2.54 mm, L=190 mm
5938A808020E	2 x USB 2.0 cable with bracket, P=2.54 mm, L=400 mm
593826A0000E	SATA signal cable/red, L=500 mm
59384500100E	Audio cable with bracket, P=2.0 mm, L=450 mm
59380402010E	1 x COM port cable with bracket, P=2.54 mm, L=300 mm
59380703000E	2 x COM port cable with bracket, P=2.54 mm, L=300 mm

Processor List
CPU	Speed	Cache	Cores	TDP
Intel® Core? i7-7700 Processor	3.6 GHz	8 MB	4	65 W
Intel® Core? i7-7700T Processor	2.9 GHz	8 MB	4	35 W
Intel® Core? i7-6700K Processor	4.0 GHz	8 MB	4	91 W
Intel® Core? i7-6700 Processor	3.4 GHz	8 MB	4	65 W
Intel® Core? i7-6700TE Processor	2.4 GHz	8 MB	4	35 W
Intel® Core? i5-7500 Processor	3.4 GHz	6 MB	4	65 W
Intel® Core? i5-7500T Processor	2.7 GHz	6 MB	4	35 W
Intel® Core? i5-6500 Processor	3.2 GHz	6 MB	4	65 W
Intel® Core? i5-6500TE Processor	2.3 GHz	6 MB	4	35 W
Intel® Core? i3-7100 Processor	3.9 GHz	3 MB	2	51 W
Intel® Core? i3-7101TE Processor	3.4 GHz	3 MB	2	35 W
Intel® Core? i3-6100 Processor	3.7 GHz	3 MB	2	51 W
Intel® Core? i3-6100TE Processor	2.7 GHz	4 MB	2	35 W
Intel® Celeron® G4620 Processor	3.7 GHz	3 MB	2	51 W
Intel® Celeron® G4400 Processor	3.3 GHz	3 MB	2	54W
Intel® Celeron® G4400TE Processor	2.4 GHz	3 MB	2	35W
Intel® Celeron® G3950 Processor	3.0 GHz	2 MB	2	51W
Intel® Celeron® G3900TE Processor	2.3 GHz	2 MB	2	35W
